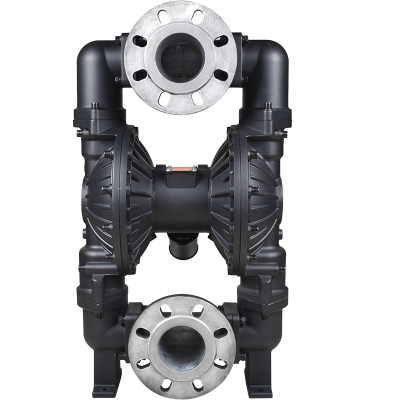

| Model: QBY3-80LTFF Body Material: Aluminium Alloy Diaphragm Material: Santoprene+Teflon Valve Ball Material: PTFE Ball Seat Material: PTFE |

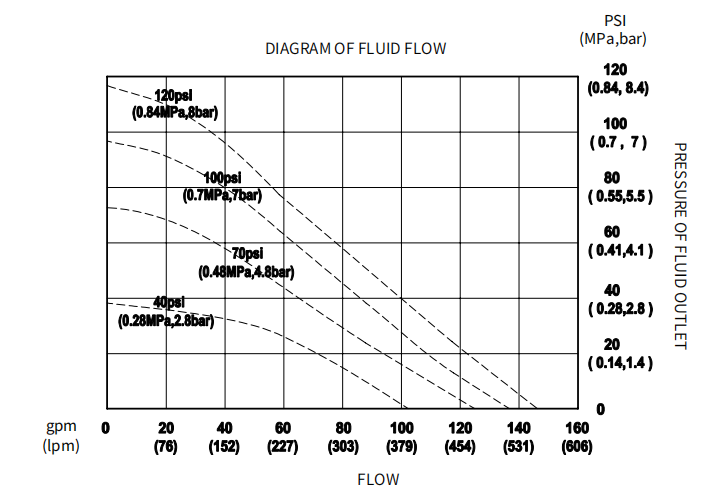

| Max. Flow Rate: 568L/min Max. Head: 84m Max. Suction Height: 5.48m |
| Fluid Inlet/Outlet Size: 3” Flange Air Inlet Size: 1/2” BSP Max. Particle Size: 6.4mm Max. Working Pressure: 8.4bar Air Comsumption: 1.5-2m³/min |
