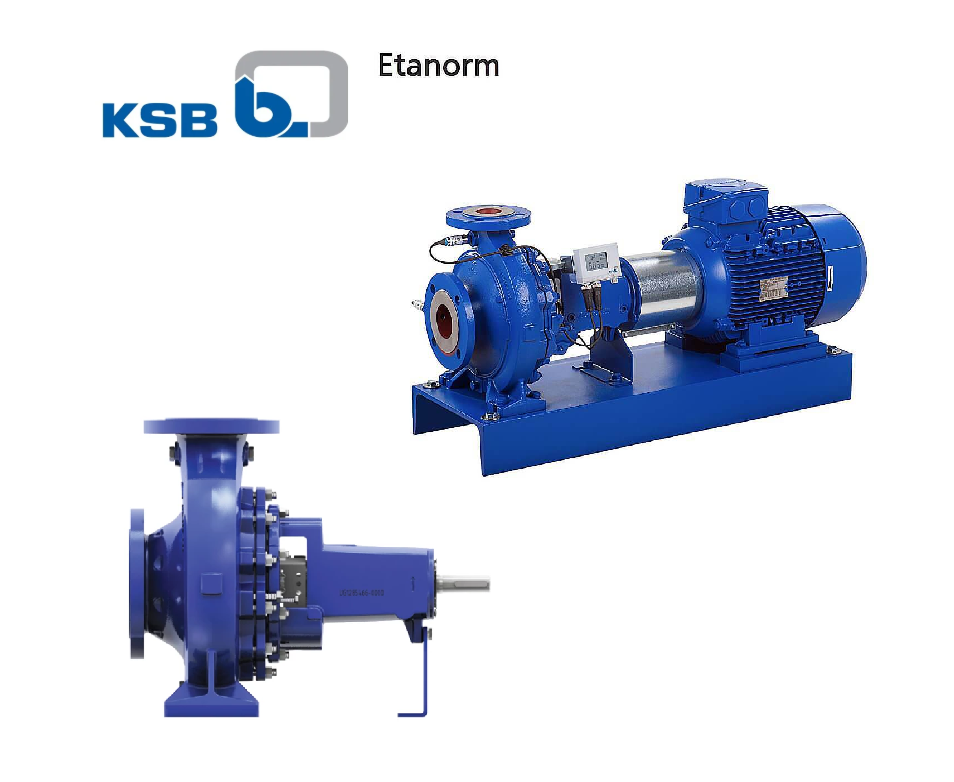

Spesifikasi Centrifugal Pump End Suction KSB ETN 080-065-200 GG :
• Ukuran : 3″ (80 mm) x 2,5″ (65 mm)
• Inlet & Outlet : Flange ANSI B.16.5 Class #150
• Kapasitas / Debit (1450 Rpm) : 25~75 m3/jam
• Head (Vertikal) (1450 Rpm) : 16,5~12,5 Mtr
• Kapasitas / Debit (2900 Rpm) : 40~140 m3/jam
• Head (Vertikal) (2900 Rpm) : 66~53 Mtr
• Angkat hisap / Suction lift : Hingga 6 Mtr (Dengan Foot valve)
• Berat jenis (Massa jenis) fluida : Hingga 1,1 (1100 Kg/m3)
• Suhu fluida : Hingga 90° Celsius
• Shaft seal : Teflon graphite packing
• Shaft BkW : 3,5 kW @ 1450 Rpm – 26,8 kW @ 2900 Rpm
• Kecepatan pompa : 1450 Rpm – 2900 Rpm
• Sistem perakitan : Horizontal direct inline coupling
• Kebutuhan daya : 5,5 Hp (4 kW) @ 1450 Rpm – 40 Hp (30 kW) @ 2900 Rpm
• Impeller diameter : 219 mm
• Tipe impeller : Tertutup (Closed)

Bahan konstruksi Centrifugal Pump End Suction KSB ETN 080-065-200 GG :
• Casing : Grey Cast iron A 48 CL 35B
• Impeller : Cast iron
• Shaft : 45C8
• Sleeve : SS-410
• Bearing Frame : Cast iron
• Bearing : Ball bearing (Grease lubricated)
